Premium 304 Stainless Steel Soft Close Cabinet Hinges - Quick Release Clip-On Design
Need more than 100 pcs? Send a quote for contractor pricing.
Couldn't load pickup availability
Description
Description
The Gold Standard for Kitchen & Bath Hardware
Tired of hinges that rust after a year or slam your cabinet doors shut? Upgrade to the VisitHardware Premium Series. Crafted from 100% high-grade SUS304 stainless steel, these hinges are built to withstand humid environments while providing a whisper-quiet, luxurious closing experience.
Why Choose Our SUS304 Series?

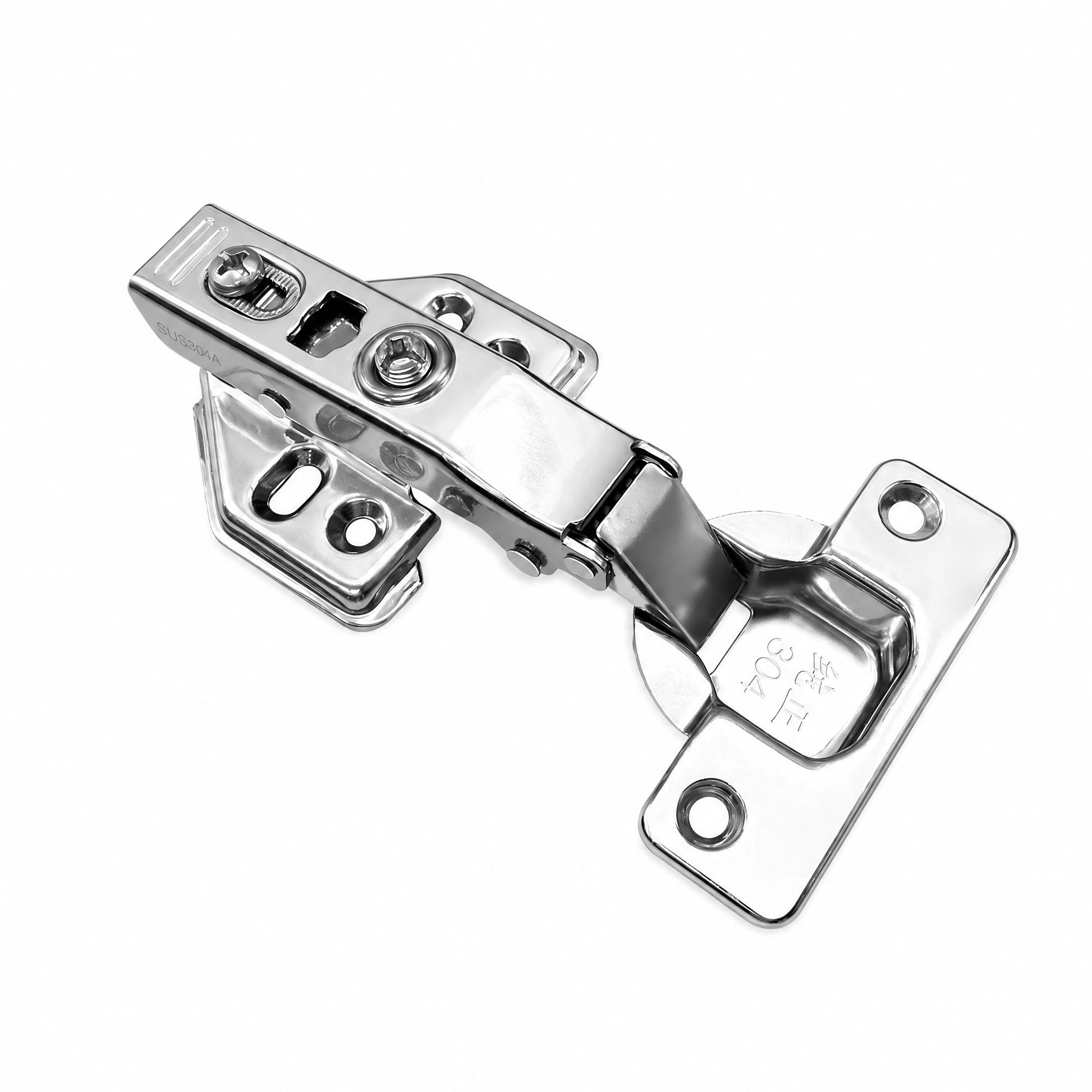

- Lifetime Rust-Proof Guarantee: Unlike standard cold-rolled steel hinges, our SUS304 material is naturally corrosion-resistant. Look for the Pure 304 material stamp on every hinge—our factory-certified mark of authenticity and steel purity.

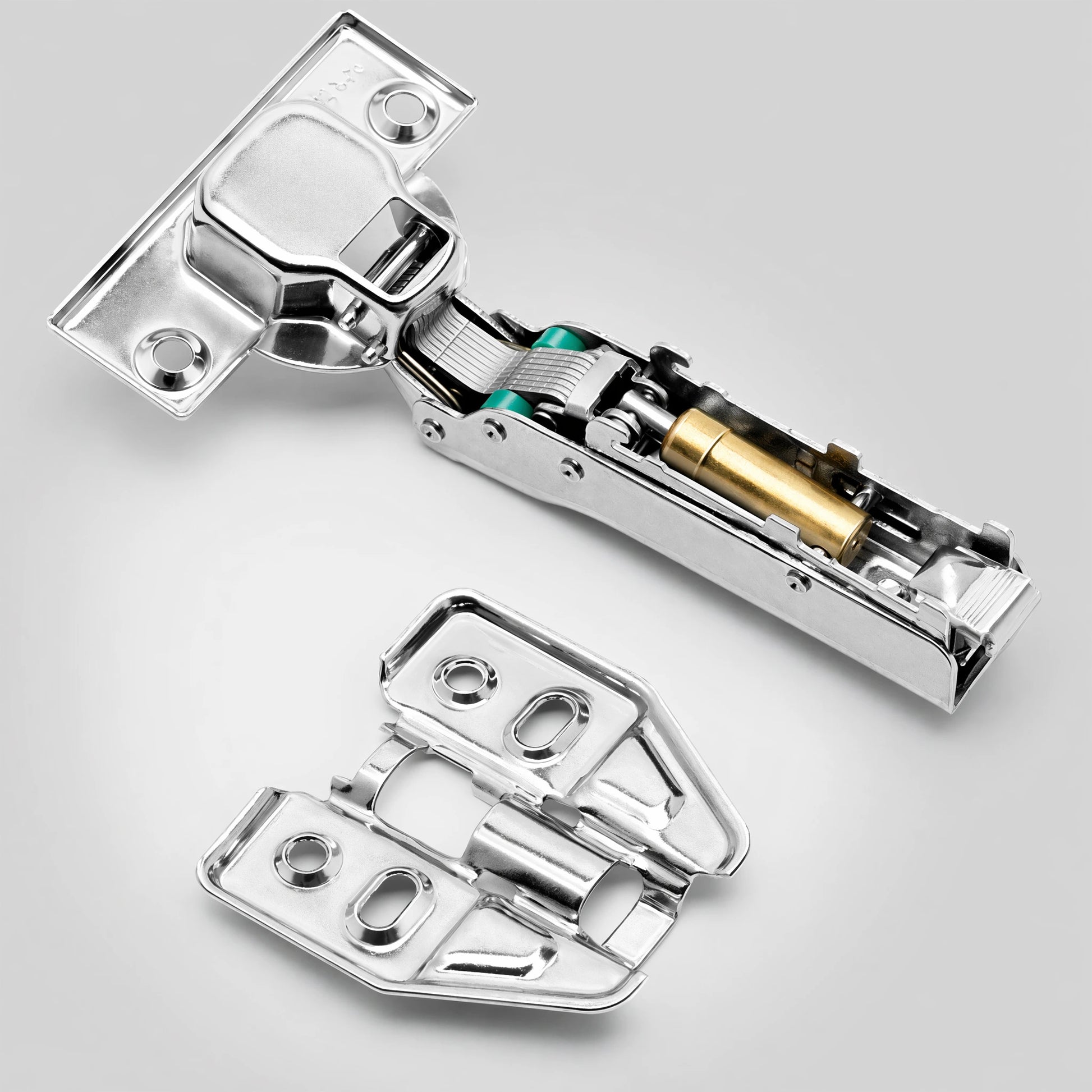

- Silent Soft-Close Technology: Featuring an integrated copper hydraulic cylinder that acts as a shock absorber, ensuring your doors close smoothly and silently every time.
- Quick-Release (Clip-On) Design: The detachable base allows you to remove the cabinet door with a single click. Perfect for deep cleaning or repainting without unscrewing the hardware.

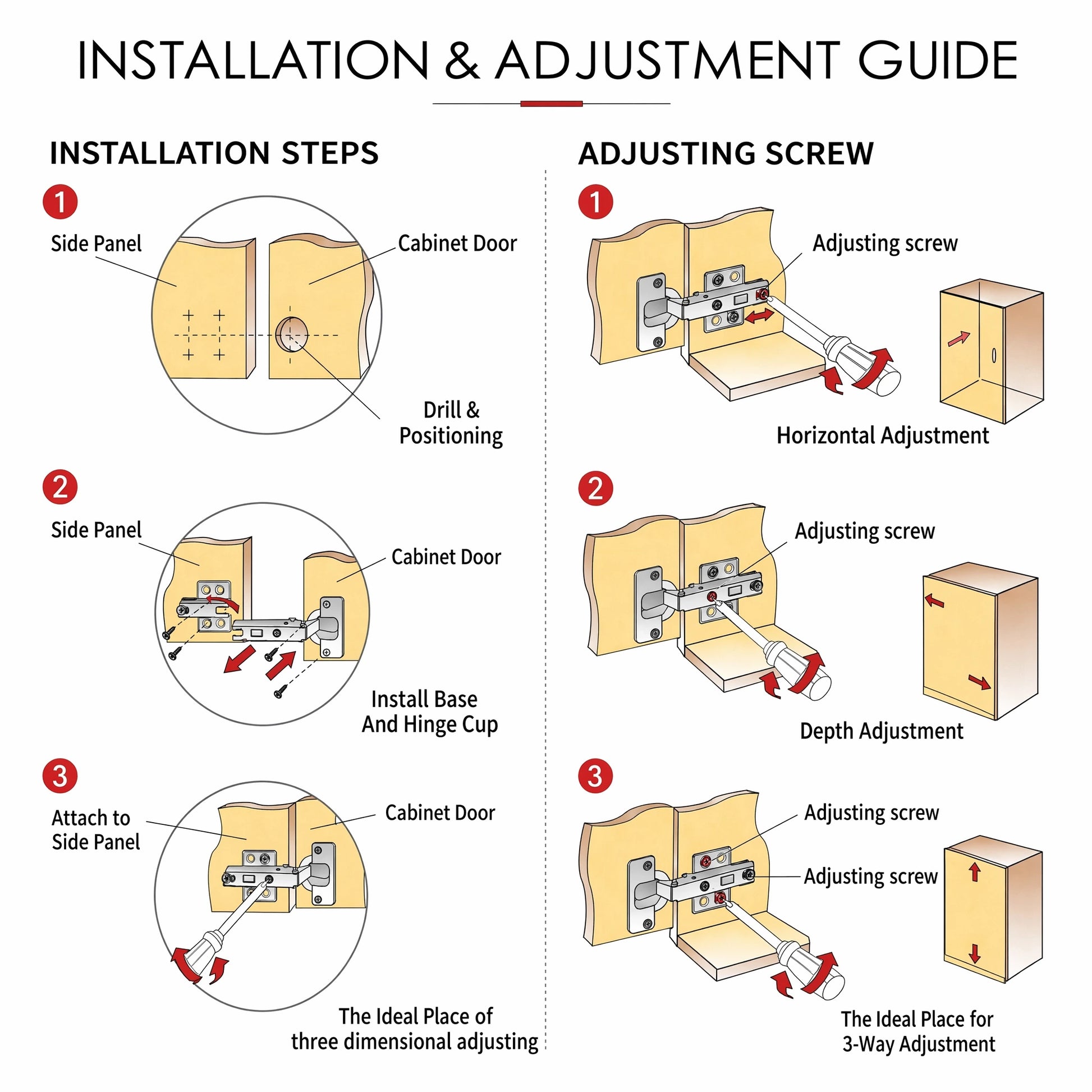

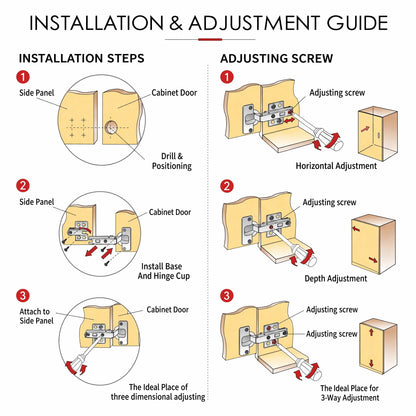

- 3-Way Precision Adjustment: Easily adjust the door height, depth, and horizontal gap using the built-in screws to achieve perfect alignment and a professional finish.
Specifications
- Material: Authentic SUS304 Stainless Steel
- Cup Diameter: 35mm (Standard Size)
- Cup Depth: 11.5mm (0.45")
- Opening Angle: 110°
- Door Thickness Range: 14mm - 22mm (0.55" - 0.87")
- Finish: High-Luster Electroplated Nickel

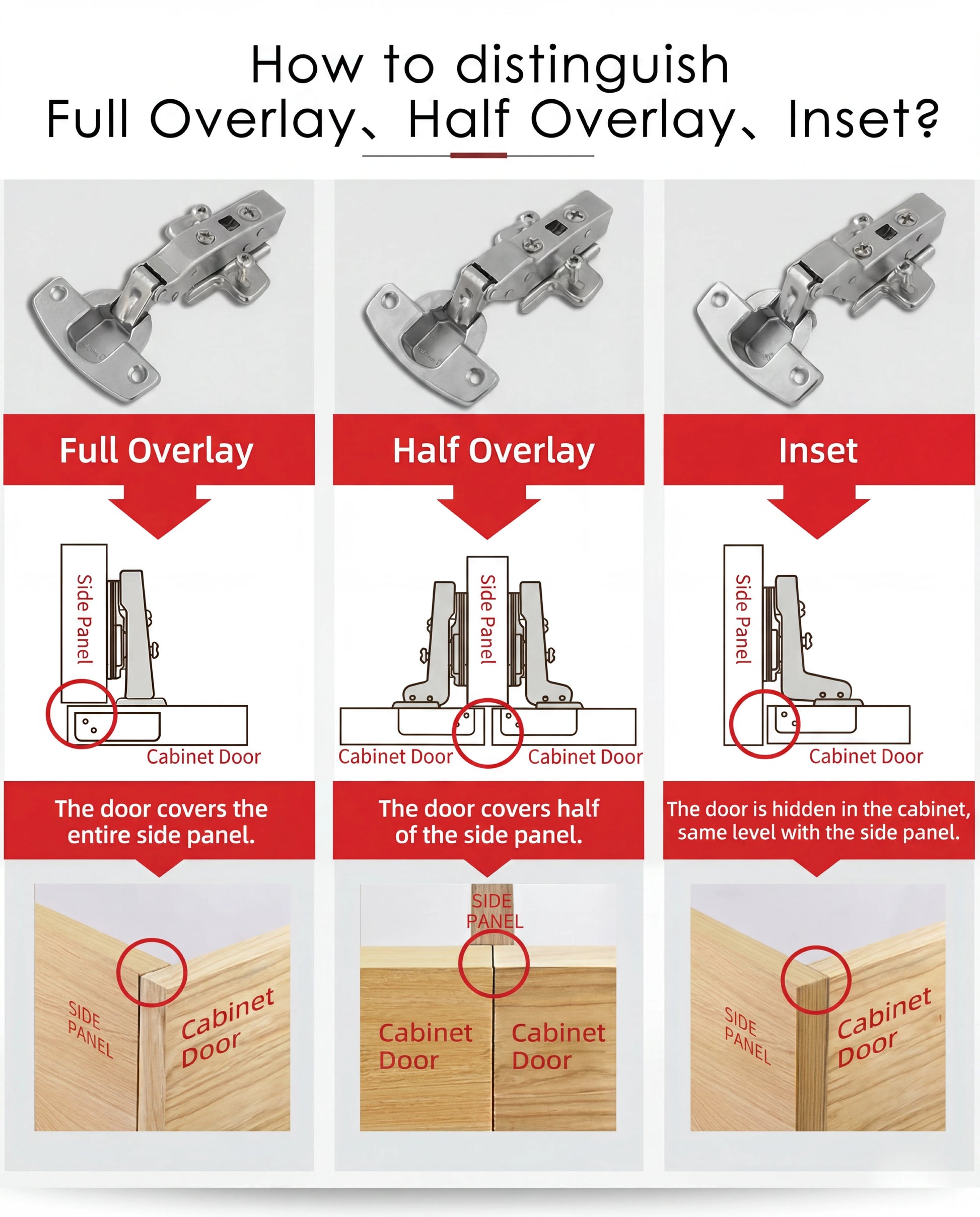

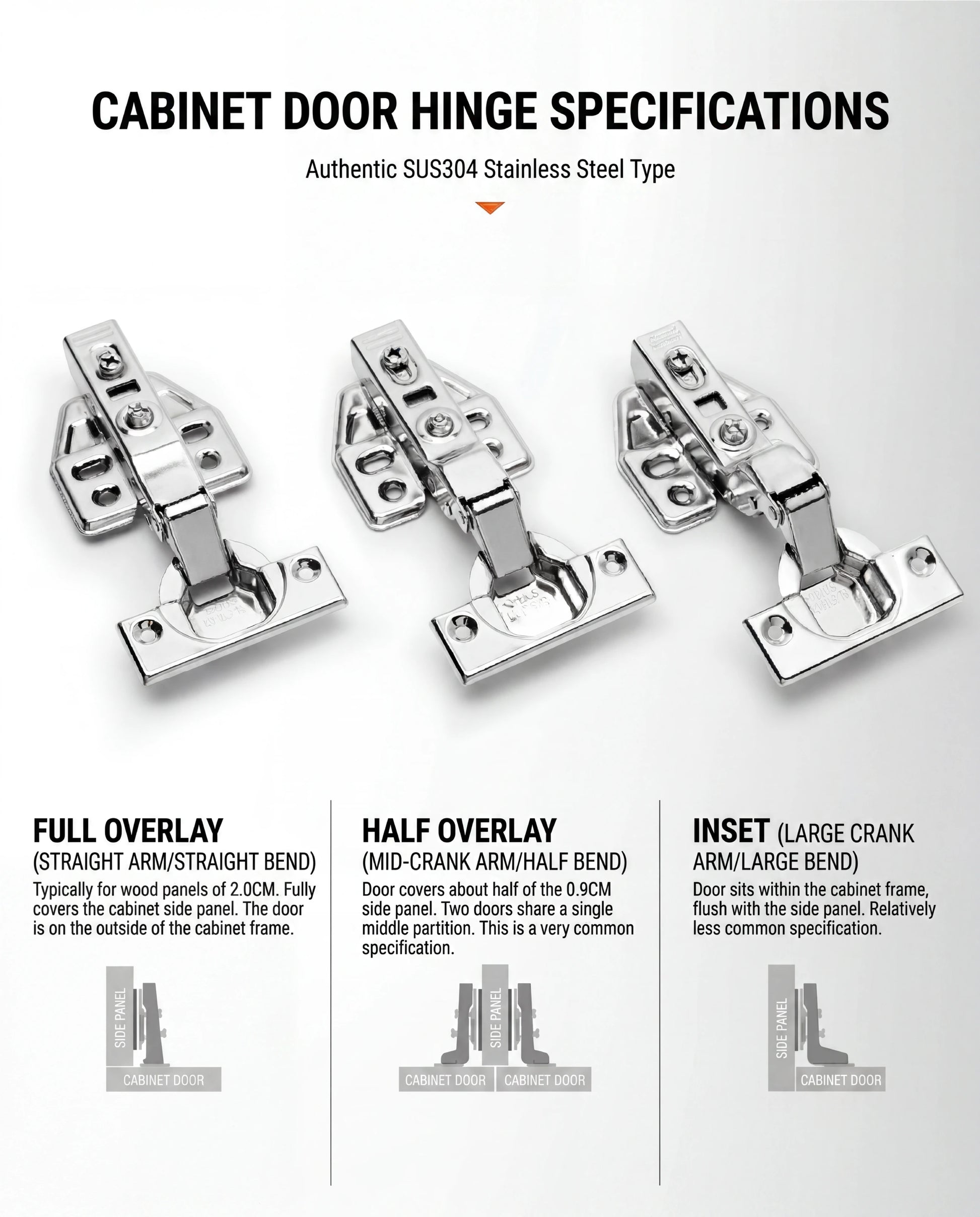

Which Overlay Do You Need?

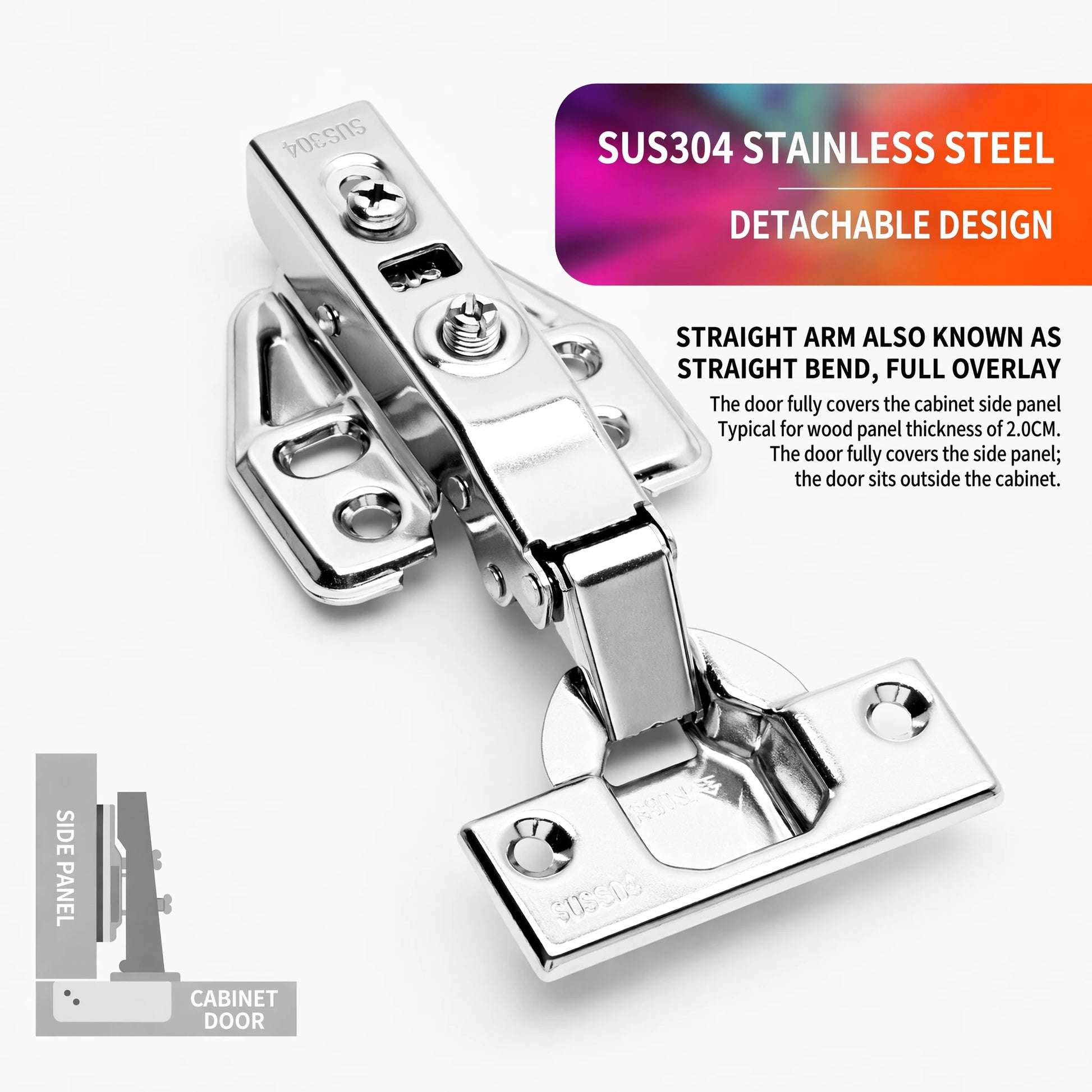

- Full Overlay: Door covers the entire cabinet side panel.

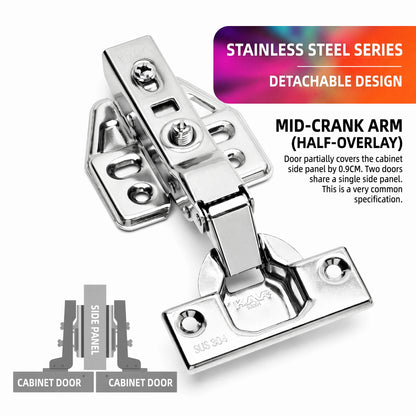

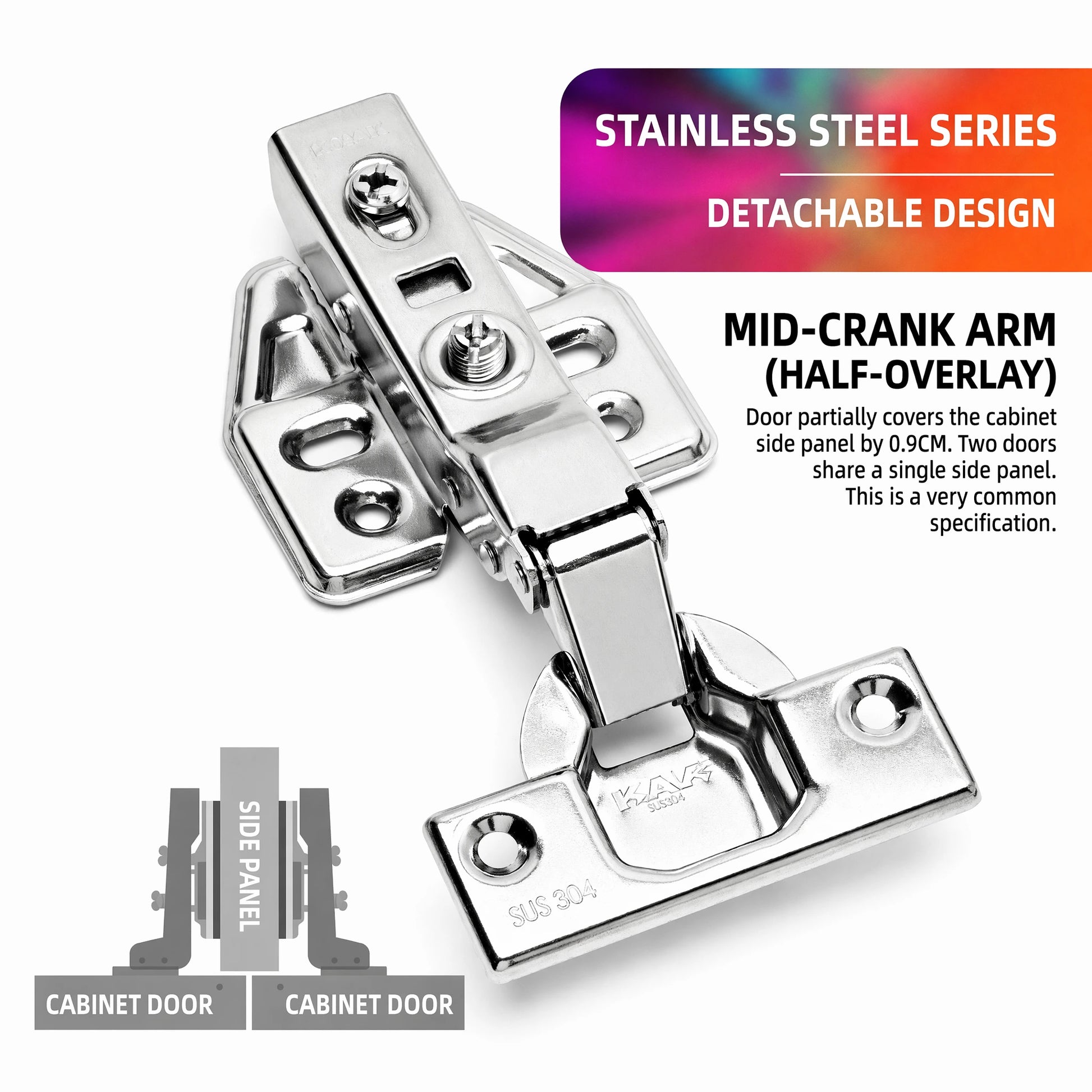

- Half Overlay: Two doors share one middle side panel.

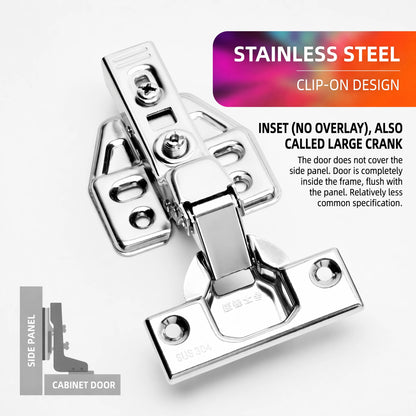

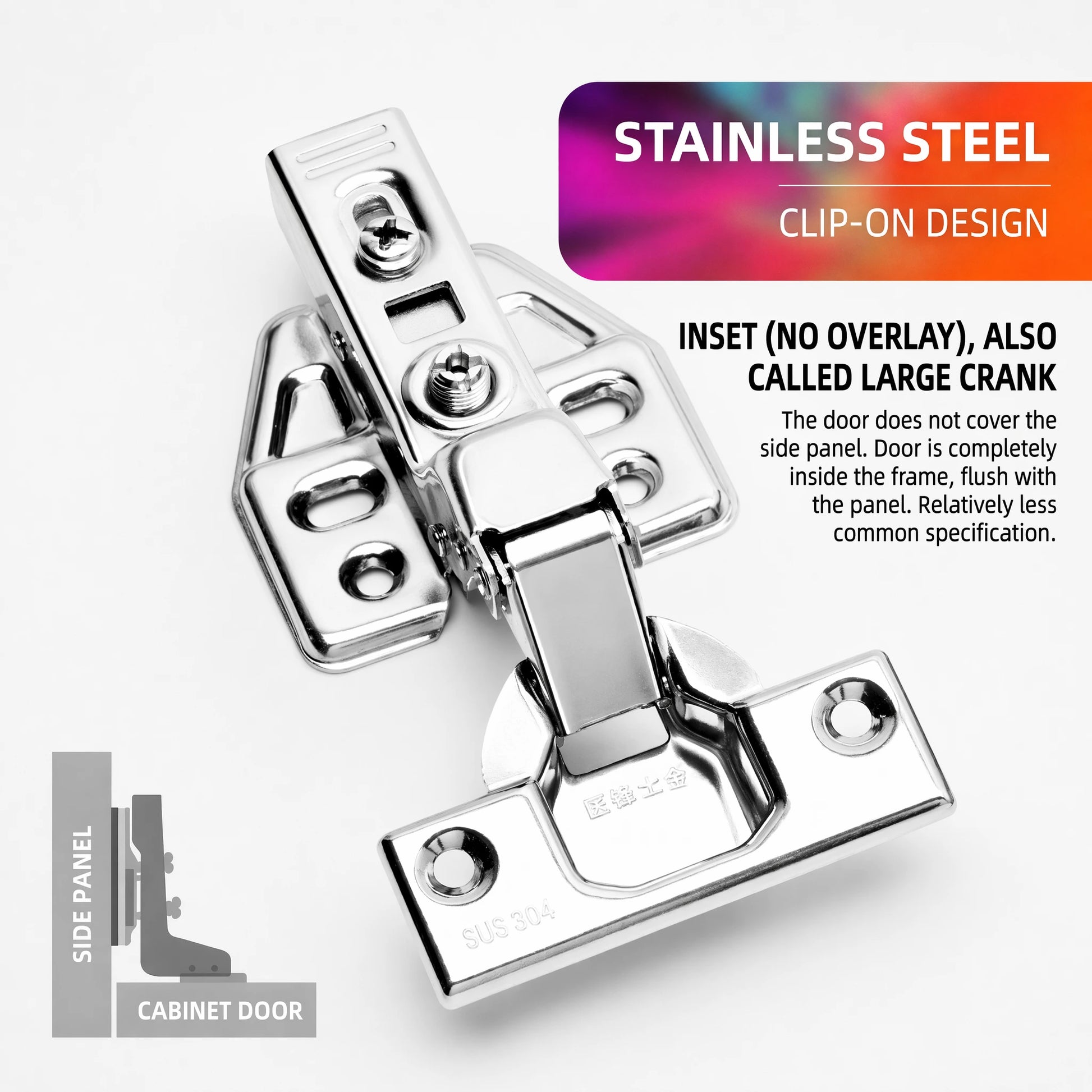

- Inset: Door sits completely inside the cabinet frame.
US Standard Size Conversion Guide:
- Hinge Cup Diameter: 35 mm / 1.38"
- Hinge Cup Depth: 11.5 mm / 0.45"
- Hole Distance: 48 mm / 1.89"
- Ideal Door Thickness: 14 - 22 mm / 0.55" - 0.87"
Package Includes: Premium SUS304 Hinges and matching mounting screws. Please select your required overlay type (Full, Half, or Inset) before ordering.
Free shipping for orders over $99
Free shipping for orders over $99
This item is in stock and normally ships within 1–3 business days. Estimated delivery is 5–13 business days from order, including processing and transit time.
- Free shipping on hardware orders over $99 — flat $9.95 otherwise.
- Returns: Returnable per our standard 30-day return policy.
- Questions? Contact us for accurate delivery dates or expedited shipping.

Frequently Asked Questions
Do your hinges come with screws?
Yes, all our hinges include a full set of matching screws. For fire-rated doors or metal frames, you may need to purchase specific machine screws or fire-rated screws separately, as local building codes vary.
How do I know which hinge size I need for my door?
The right hinge size depends on your door’sweight, thickness, and width.
- Interior Doors: Typically use 3.5" x 3.5" hinges (3 hinges per door).
- Exterior/Heavy Doors: Usually require 4" x 4" hinges (often 4 hinges per door for added security).
- Rule of Thumb: If your door is over 2 inches thick or weighs more than 60 lbs, upgrade to 4" hinges. Check our Sizing Guide in the product description for specific weight charts.
What is the difference between "Residential" and "Commercial" grade hinges?
Residential hingesare designed for standard home use with lighter traffic.Commercial grade hingesfeature heavier gauge steel, ball-bearing mechanisms for smooth operation under frequent use, and often meet fire-rating standards (e.g., UL 10C). For high-traffic areas like offices or entryways, we strongly recommend our Commercial Grade collection.
Do you sell hinges for cabinet doors?
Yes! We offer a wide range ofcabinet hinges, including concealed (European style), semi-concealed, and surface-mounted varieties. Please note that cabinet hinges have different mounting requirements than door hinges. Check the "Cabinet Hardware" category for overlay and inset options.
Are your hinges suitable for outdoor or coastal environments?
For outdoor or coastal areas where salt and moisture are present, we highly recommend our304 Stainless SteelorMarine Grade 316 Stainless Steelhinges. These materials offer superior rust and corrosion resistance compared to standard steel or brass-plated options. Avoid using non-stainless finishes outdoors unless they are specifically coated for exterior use.
What does "Ball Bearing" mean, and why do I need it?
Ball bearing hingescontain small steel balls between the knuckles to reduce friction. This ensures the door swings smoothly and quietly, even if it’s heavy. They also prevent sagging over time and significantly extend the life of the hinge. We recommend ball-bearing hinges for all solid wood or metal exterior doors.
Will the finish tarnish or peel over time?
Our premium finishes (like Satin Nickel, Oil-Rubbed Bronze, and Polished Brass) are applied using durable PVD (Physical Vapor Deposition) or electroplating processes to resist tarnishing and peeling under normal indoor conditions. However, harsh chemicals or abrasive cleaners can damage the finish. For outdoor use, always choose solid stainless steel or solid brass for the best longevity.
Are your hinges easy to install for a DIY beginner?
Absolutely. Most of our standard butt hinges come with pre-drilled holes and include matching screws. If you are replacing existing hinges, simply match the dimensions and screw hole pattern. For new installations, we recommend using a hinge jig for perfect alignment. Check out ourInstallation Video Tutorialslinked on each product page.
